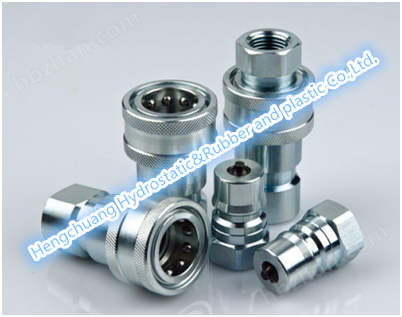

型號：ISO7241-B/S2開閉式液壓快速接頭
ISO7241-B//S2 CLOSETY HYDRAULIC QUICK COUPLING
產品詳情
描述：
ISO7241-B/S2開閉式液壓快速接頭（碳鋼）
應用：ISO7241-B/S2接頭使用于各種范圍的液壓應用。這類雙截止接頭能適用以下情況：流體輸送管路因設備操作或維護而需要連接及斷開，而且希望不出現流體損耗。LSQ-S2接頭廣泛應用于各種工業所需的連接，主要用于建筑設備森林設備農業機械液壓機具石油設備鋼鐵設備化學品及其它所需的液壓應用。
技術規范：
規格(英寸) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
額定壓力(I) | 5000 | 5000 | 4000 | 4000 | 3000 | 3000 |
額定流量(GPM) | 1 | 3 | 6 | 12 | 28 | 50 |
溫度范圍(標準密封圈) | -20℃至+120℃ | |||||
標準密封圈材料 | 丁腈橡膠NBR | |||||
ISO7241-B/S2系列接頭具有以下特征：
1接頭斷開時，閥芯自動閉合，防止泄漏。
2接頭連接后，閥自動開啟，在額定工作范圍內，始終保持流體的暢通。
3關鍵部件經過感應淬火，所以耐用性好。
4可靠的球機構將相匹配的兩半部分結合在一起。
5母插座和公插頭采用實心的棒料精密制造。
6本接頭符合ISO7241-B標準。
7并與下列產品互換：美國派克(PARKER)60系列意大利快事達(FASTER)HNV系列美國愛力克(AEROQUIP)FD45系列美國漢森(HANSEN)HK系列。
性能：測試液體油-200SUS，1GPM=3.78L/Min,1ID=0.0069MPa.
ISO7241-B/S2系列(1/4",3/8",1/2",3/4",1")
Descripton:
LSQ-S2 Close Type Hydraulic Quick Coupling(Steel)
Applications:LSQ-S2 couplings, are used across the spectrum of hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable.LSQ-S2 are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications.
Specifications:
| Body Size(in) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 |
| Rated Pressure(I) | 5000 | 5000 | 4000 | 4000 | 3000 | 3000 |
| Rated Flow(GPM) | 1 | 3 | 6 | 12 | 28 | 50 |
| Temperature Range | -20℃ to +120℃ | |||||
| Seal material | NBR | |||||
LSQ-S2 Series couplings feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socket and plug are precision machined from solid bar stock.
6.LSQ-S2 series conforms to the standard of ISO 7241-B.
7.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series.
Performance: Test Fluid:Oil-200SUS.1GPM=3.78L/Min,1ID=0.0069MPa
LSQ-S2 Series(1/4",3/8",1/2",3/4",1")
母插座
ISO | PARTNO. | LS | ￠D | HEX1 | A | T |
5 | S2-01SF | 48 | 24 | 17 | 9.5 | G1/8 NPT1/8 |
6.3 | S2-02SF | 58 | 28.5 | 19 | 13 | G1/4 NPT1/4 |
10 | S2-03SF | 65 | 35 | 24 | 13 | G3/8 NPT3/8 |
12.5 | S2-04SF | 74 | 44.5 | 28.5 | 20.5 | G1/2 NPT1/2 |
20 | S2-06SF | 92 | 54 | 36 | 22 | G3/4 NPT3/4 |
25 | S2-08SF | 103 | 63.5 | 41 | 23 | G1 NPT1 |
公插頭
ISO | PARTNO. | LP | d | C | HEX2 | A | T |
5 | S2-01PF | 29 | 10.8 | 19 | 14 | 9.5 | G1/8 NPT1/8 |
6.3 | S2-02PF | 36 | 14.2 | 22.8 | 19 | 13 | G1/4 NPT1/4 |
10 | S2-03PF | 40 | 19 | 25 | 24 | 13 | G3/8 NPT3/8 |
12.5 | S2-04PF | 46.5 | 23.5 | 28 | 28.5 | 20.5 | G1/2 NPT1/2 |
20 | S2-06PF | 56 | 31.5 | 36 | 36 | 22 | G3/4 NPT3/4 |
25 | S2-08PF | 63 | 37.8 | 45 | 41 | 23 | G1 NPT1 |
連接裝配器
ISO | PARTNO. | LS | ￠D | HEX1 | HEX2 | T |
5 | S2-01 | 58.8 | 24 | 17 | 14 | G1/8 NPT1/8 |
6.3 | S2-02 | 72 | 28.5 | 19 | 19 | G1/4 NPT1/4 |
10 | S2-03 | 80.5 | 35 | 24 | 24 | G3/8 NPT3/8 |
12.5 | S2-04 | 93.5 | 44.5 | 28.5 | 28.5 | G1/2 NPT1/2 |
20 | S2-06 | 112.5 | 54 | 36 | 36 | G3/4 NPT3/4 |
25 | S2-08 | 126.5 | 63.5 | 41 | 41 | G1 NPT1 |
