產品詳情說明

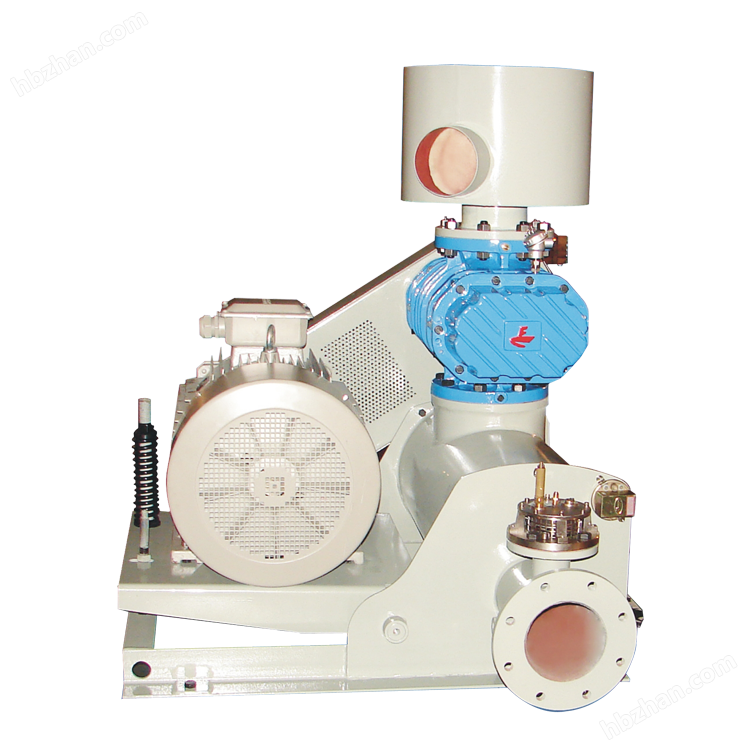

JTS,JAS系列三葉成組型低噪聲羅茨鼓風機
產品特點
JTS 系列三葉成組型低噪聲羅茨鼓風機是在引進技術產品基礎上，運用三葉、內回流、成組等技術研發的新一代低能耗、低噪聲產品。它集風機、電機、過濾 器、進出口消聲器、彈性接頭、安全閥、止回閥、壓力計于一體，并可配置PLC信號接口，智能監控儀、隔聲罩。結構緊湊、功能齊全、設計安裝更便利，操作維 護更省心。
JTS系列三葉成組型低噪聲羅茨鼓風機運用了三葉葉型、螺旋形進出口、緩沖氣腔等結構，具有顯著的低噪 聲特點?？筛鶕?jù)用戶要求對風機機械性能進行監測，監測儀直接安裝于隔聲罩上，方便操作者隨時掌握風機的安全運行狀況。該機適用于輸送潔凈空氣，是廣大用戶 在9.8～58.8kPa升壓下的理想選擇。
JAS系列三葉成組型低噪聲羅茨鼓風機采用三葉擺線葉型、內回流結構等設計技術和高精度制造技術，在高壓力上具有非常穩定的性能，應用范圍十分廣泛，可派生多種密封結構型式，滿足各種特殊工況的要求，是廣大用戶在49～98kPa下的產品。
產品用途
JTS,JAS系列羅茨鼓風機可廣泛應用于石油、化工、冶金、電力、化肥、建材、礦山、港口、輕紡、造紙、食品、醫藥、環保、空分、氣力輸送、城市燃?xì)獾刃袠I(yè)。
流量：0.59-100.7m3/min,壓力：9.8-98kPa

	JAS系列羅茨鼓風機性能表 Performance table of Series JAS Roots Blowers                                                                                     表1
風機型號	轉速	各排氣壓力下的進口流量Qs(m3/min),所需軸功率La(kW)及所配電機功率Po(kW)																														電機
	Speed	Inlet volume Qs(m3/min) shaft power required La (kW) and motor power Po(kW) at each discharge pressure																														極數
Type	r/min	9.8kPa			19.6kPa			29.4kPa			39.2kPa			49.0kPa			58.8kPa			68.6kPa			78.4kPa			88.2kPa			98.0kPa			Motor pol
	n	Qs	La	Po	Qs	La	Po	Qs	La	Po	Qs	La	Po	Qs	La	Po	Qs	La	Po	Qs	La	Po	Qs	La	Po	Qs	La	Po	Qs	La	Po	P
JAS-80	1150	3.36	1.3	2.2	3.01	2.1	3	2.71	2.8	4	2.46	3.5	5.5	2.21	4.3	5.5	2.01	5.0	7.5													4
	1450	4.59	1.6	2.2	4.24	2.6	4	3.94	3.6	5.5	3.69	4.5	5.5	3.44	5.5	7.5	3.24	6.5	7.5	3.09	7.5	11										4
	1750	5.80	2.0	3	5.45	3.1	4	5.15	4.3	5.5	4.90	5.4	7.5	4.65	6.5	7.5	4.45	7.7	11	4.30	8.9	11	4.15	10.0	15							4
	2000	6.81	2.3	3	6.46	3.6	5.5	6.16	4.9	7.5	5.91	6.2	7.5	5.66	7.5	11	5.46	8.8	11	5.31	10.1	15	5.16	11.4	15							2
	2500	8.79	2.9	4	8.50	4.6	5.5	8.20	6.2	7.5	7.95	7.9	11	7.70	9.5	11	7.50	11.2	15	7.35	12.9	15	7.20	14.5	18.5							2
JAS-100	1150	5.11	1.8	3	4.72	2.9	4	4.38	3.9	5.5	4.08	5.0	7.5	3.81	6.1	7.5	3.58	7.2	11	3.38	8.3	11										4
	1450	6.84	2.3	3	6.45	3.6	5.5	6.11	4.9	7.5	5.81	6.3	7.5	5.54	7.6	11	5.31	9.0	11	5.11	10.3	15										4
	1750	8.56	2.7	4	8.17	4.3	5.5	7.83	5.9	7.5	7.53	7.4	11	7.26	9.0	11	7.03	10.7	15	6.83	12.3	15										4
	2000	9.99	3.0	4	9.60	4.8	7.5	9.26	6.7	11	8.96	8.6	11	8.69	10.5	15	8.46	12.4	15	8.26	14.3	18.5										2
	2500	12.9	3.9	5.5	12.5	6.2	7.5	12.1	8.5	11	11.9	10.8	15	11.6	13.1	18.5	11.4	15.4	18.5													2
JAS-125	970Δ	8.85	2.6	4	8.25	4.5	7.5	7.87	6.4	7.5	7.42	8.3	11	7.07	10.2	15	6.72	12.1	15	6.39	14.0	18.5	6.12	16.0	18.5							6
	1150	11.5	3.1	5.5	10.9	5.3	7.5	10.4	7.6	11	9.97	9.9	15	9.62	12.2	15	9.27	14.4	18.5	8.97	16.7	22	8.67	19.0	30	8.42	21.3	30				4
	1450Δ	14.7	4.0	5.5	14.1	6.8	11	13.6	9.7	15	13.2	12.6	15	12.8	15.5	18.5	12.5	18.3	22	12.2	21.2	30	11.9	24.1	30	11.6	27.0	37	11.4	29.9	37	4
	1750	18.7	4.9	7.5	18.1	8.3	11	17.6	11.8	15	17.1	15.2	18.5	16.8	18.7	22	16.4	22.2	30	16.1	25.6	30	15.8	29.1	37	15.5	32.6	45	15.3	36.0	45	4
	2000	21.6	5.6	7.5	21.0	9.5	15	20.5	13.5	18.5	20.1	17.4	22	19.7	21.4	30	19.4	25.3	30	19.1	29.3	37	18.8	33.2	45	18.5	37.2	45	18.3	41.2	55	2
	2250	24.6	6.4	11	24.0	10.7	15	23.5	15.2	18.5	23.1	19.6	30	22.7	24.1	30	22.4	28.5	37	22.1	33.0	45	21.8	37.4	45	21.5	41.9	55	21.3	46.4	55	2
JAS-145	970Δ	13.9	4.0	5.5	13.2	6.9	11	12.5	9.8	15	11.8	12.8	18.5	11.3	15.7	18.5	10.8	18.6	22	10.3	21.6	30	9.60	25.2	30							6
	1150	17.8	4.8	7.5	16.8	8.5	11	16.1	12.3	15	15.5	15.2	18.5	14.9	18.6	22	14.4	22.1	30	13.9	25.6	30	13.6	31.1	37	13.2	33.3	45				4
	1450Δ	22.8	6.0	7.5	21.9	10.5	15	21.2	15.0	18.5	20.5	19.5	30	20.0	24.0	30	19.5	28.5	37	19.0	33.0	37	18.6	37.6	45	18.2	41.2	55				4
	1750	28.6	7.3	11	27.7	12.5	15	27.0	17.8	22	26.3	23.1	30	25.8	28.3	37	25.3	33.6	45	24.8	38.9	45	24.5	44.2	55	24.1	49.5	75				4
	2000	33.2	8.3	11	32.3	14.3	18.5	31.6	20.3	30	30.9	26.3	37	30.3	32.4	45	29.9	38.4	45	29.4	44.4	55	29.0	50.5	75	28.6	56.6	75				2
	2250	37.7	9.4	15	36.8	16.1	22	36.1	22.9	30	35.4	29.6	37	34.8	36.5	45	34.4	43.2	55	33.9	50.0	75	33.5	56.9	75							2
JAS-150	970Δ	17.6	4.9	7.5	16.5	8.5	11	15.6	12.1	15	14.9	15.7	18.5	14.2	19.3	30	13.6	22.9	30	13.1	26.5	30										6
	1150	22.1	5.7	7.5	21.0	9.9	15	20.1	14.2	18.5	19.4	18.5	22	18.7	22.8	30	18.0	27.1	37	17.5	31.4	37										4
	1450Δ	28.3	7.2	11	27.2	12.6	18.5	26.3	18.0	22	25.6	23.4	30	24.9	28.8	37	24.3	34.2	45	23.8	39.6	45	23.3	45.0	55							4
	1750	35.4	8.7	15	34.3	15.2	18.5	33.4	21.7	30	32.7	28.2	37	32.0	34.7	45	31.4	41.2	55	30.9	47.8	55	30.4	54.4	75							4
	2000	41.0	10.0	15	39.9	17.4	22	39.0	24.8	30	38.3	33.3	45	37.6	39.7	45	37.0	47.2	55	36.4	54.7	75										2
JAS-190	730Δ	22.1	6.6	11	21.3	11.2	15	20.3	15.7	18.5	19.5	20.3	30	18.7	24.9	30	18.1	29.4	37	17.5	33.9	45	17.0	38.5	45	16.6	43.1	55				8
	970Δ	31.9	8.4	11	30.7	14.5	18.5	29.7	20.6	30	28.9	26.7	37	28.1	32.8	45	27.5	39.0	45	26.9	45.1	55	26.4	51.0	75	26.0	57.3	75	25.6	63.5	75	6
	1170	40.1	10.2	15	38.9	17.6	22	37.9	25.0	30	37.1	32.4	45	36.3	39.8	45	35.7	47.1	55	35.1	54.7	75	34.6	62.1	75	34.2	69.5	90	33.8	77.0	90	4
	1250	43.1	11.2	15	41.9	19.0	30	40.9	26.9	37	40.1	34.8	45	39.3	42.7	55	38.7	50.6	75	37.1	58.5	75	36.6	66.4	75	36.2	74.3	90	35.8	82.2	110	4
	1350	47.0	12.2	18.5	45.8	20.6	30	44.8	29.1	37	44.0	37.6	45	43.2	46.0	55	42.6	54.5	75	42.0	63.0	75	41.5	71.4	90	41.1	79.9	90	40.7	88.4	110	4
	1450Δ	50.2	13.0	18.5	49.0	22.1	30	48.0	31.2	37	47.2	40.3	55	46.4	49.4	75	45.8	58.5	75	45.2	67.6	90	44.7	76.7	90	44.3	85.8	110	43.9	94.9	110	4
JAS-195	730Δ	29.8	8.2	11	28.1	13.9	18.5	26.8	19.7	30	25.7	25.5	30	24.7	31.3	37	23.9	37.0	45	23.0	42.8	55	22.3	48.6	55	21.6	54.4	75	20.9	60.1	75	8
	970Δ	41.8	10.9	15	40.1	18.5	30	38.7	26.2	30	37.6	33.9	45	36.6	41.5	55	35.7	49.2	55	34.9	56.9	75	34.1	64.6	75	33.4	72.2	90	32.7	79.9	90	6
	1170	48.9	12.5	18.5	47.2	21.4	30	45.9	30.3	37	44.7	39.1	45	43.7	48.0	55	42.8	56.8	75	42.0	65.7	75	41.2	74.5	90	40.5	83.4	110	39.8	92.3	110	4
	1250	56.1	14.2	18.5	54.3	24.3	30	53.0	34.3	45	51.9	44.4	55	50.9	54.4	75	50.0	64.4	75	49.1	74.5	90	48.4	84.5	110	47.6	94.6	110	47.0	105	132	4
	1350	59.9	15.1	18.5	58.1	25.8	37	56.8	36.5	45	55.6	47.1	55	54.7	57.8	75	53.8	68.5	90	52.9	79.2	90	52.2	89.9	110	51.4	101	132	50.8	111	132	4
	1450Δ	64.6	16.2	22	62.9	27.7	37	61.5	39.2	45	60.4	50.6	75	59.4	62.1	75	58.5	73.6	90	57.7	85.0	110	56.9	96.5	110	56.2	108	132	55.5	119	160	4
JAS-200	730Δ	36.5	9.8	15	34.9	16.7	22	33.6	23.6	30	32.4	30.5	37	31.4	37.4	45	30.4	44.3	55	29.5	51.2	75	28.7	58.2	75	27.9	65.2	75				8
	970Δ	51.1	12.6	18.5	49.5	22.0	30	48.2	31.4	37	47.0	40.8	55	46.0	50.2	75	45.0	59.6	75	44.1	69.0	90	43.3	78.4	90	42.5	87.8	110	41.7	97.2	110	6
	1170	62.7	15.3	22	61.1	26.5	37	59.8	37.8	45	58.6	49.0	75	57.6	60.3	75	56.6	71.5	90	55.7	82.8	110	54.9	94.1	110	54.1	105	132				4
	1250	67.4	16.3	22	65.8	28.4	37	64.5	40.5	55	63.3	52.6	75	62.3	64.7	75	61.3	76.8	90	60.4	88.9	110	59.6	101	132	58.8	113	132				4
	1350	73.1	17.3	30	71.5	30.2	45	70.2	43.2	55	69.0	56.1	75	68.0	69.1	90	67.0	82.0	110	66.1	95.0	110	65.3	108	132							4
	1450Δ	78.8	18.6	30	77.2	32.6	45	75.9	46.7	55	74.7	60.7	75	73.7	74.8	90	72.7	88.8	110	71.8	103	132	71.0	117	132	70.2	131	160	69.4	145	160	4
JAS-250	730Δ	46.7	11.7	15	44.7	20.6	30	42.9	29.5	37	41.4	38.4	45	40.1	47.3	55	38.9	56.2	75	37.7	65.5	75										8
	970Δ	65.3	15.3	22	63.3	27.2	37	61.5	39.1	45	60.0	51.1	75	58.7	63.0	75	57.5	75.0	90	56.3	87.0	110										6
	1170	80.0	18.4	30	78.0	32.8	45	76.2	47.2	55	74.7	61.6	75	73.4	76.0	90	72.2	90.4	110	71.0	105	132										4
	1250	86.0	20.4	30	84.0	35.6	45	82.2	50.8	75	80.7	66.1	75	79.4	81.3	90	78.1	96.6	110	76.9	112	132										4
	1350	93.4	21.4	30	91.4	38.1	55	89.6	54.8	75	88.1	71.5	90	86.8	88.2	110	85.6	105	132													4
	1450Δ	100.7	23.1	30	98.7	40.8	55	96.9	58.6	75	95.4	76.4	90	94.1	94.2	110	92.9	112	132	91.6	131	160										4
