密封型 |

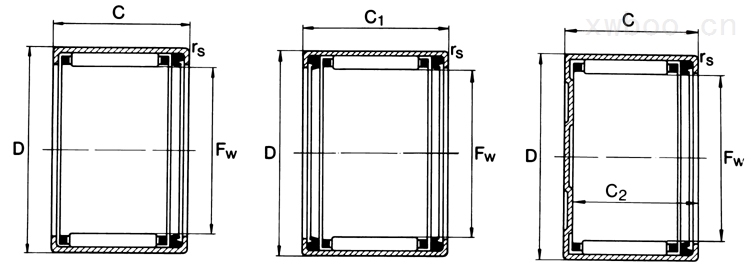

K...RS HK...2RS BK...RS |
HK...RS,HK...2RS,BK...RS | |
|
軸徑 | 軸承型號 | 外 型 尺 寸 | 基本額定負荷 | 極限轉速 | |||
現行的 | FW | D | C | 動 C | 靜 Cor | 油潤滑 | |
mm | mm | N | rpm | ||||
8 | HK0810RS | 8 | 12 | 10 | 2250 | 2100 | 19000 |
HK0812 2RS | 8 | 12 | 12 | 2250 | 2100 | 19000 | |
9 | HK09X13X12RS | 9 | 13 | 12 | 3800 | 4300 | 19000 |
10 | HK1012RS | 10 | 14 | 12 | 4100 | 5000 | 19000 |
HK1014 2RS | 10 | 14 | 14 | 4100 | 5000 | 15000 | |
12 | HK1214RS | 12 | 18 | 14 | 6100 | 7000 | 15000 |
HK1216 2RS | 12 | 18 | 16 | 6100 | 7000 | 12000 | |
14 | HK1414RS | 14 | 20 | 14 | 6100 | 7500 | 13000 |
HK1416 2RS | 14 | 20 | 16 | 6100 | 7500 | 11000 | |
15 | HK1514RS | 15 | 21 | 14 | 6800 | 8800 | 11000 |
HK1516 2RS | 15 | 21 | 16 | 6800 | 8800 | 10000 | |
HK1518RS | 15 | 21 | 18 | 9500 | 11400 | 10000 | |
HK1520 2RS | 15 | 21 | 20 | 9500 | 11400 | 10000 | |
16 | HK1614RS | 16 | 22 | 14 | 7200 | 9200 | 10000 |
HK1616 2RS | 16 | 22 | 16 | 7200 | 9200 | 10000 | |
BK1614RS | 16 | 22 | 14 | 7200 | 9200 | 10000 | |
HK1620 2RS | 16 | 22 | 20 | 9900 | 12300 | 10000 | |
17 | HK17X25X14RS | 17 | 25 | 14 | 8000 | 9800 | 10000 |
HK17X25X15.5RS | 17 | 25 | 15.5 | 9320 | 10400 | 13000 | |
HK17X25X18RS | 17 | 25 | 18 | 10500 | 12600 | 13000 | |
HK17X25X20RS | 17 | 25 | 20 | 11600 | 13200 | 13000 | |
18 | HK1816 2RS | 18 | 24 | 16 | 7800 | 9900 | 9200 |
20 | HK2016 2RS | 20 | 26 | 16 | 8000 | 10100 | 9000 |
HK2018RS | 20 | 26 | 18 | 12700 | 20100 | 8200 | |
HK2020 2RS | 20 | 26 | 20 | 12700 | 20100 | 7800 | |
BK20X27X18RS | 20 | 27 | 18 | 12700 | 20100 | 7800 | |
HK20X29X18RS | 20 | 29 | 18 | 8700 | 9980 | 7800 | |
22 | HK2216 2RS | 22 | 28 | 16 | 9000 | 12400 | 7800 |
HK2220 2RS | 22 | 28 | 20 | 10400 | 20100 | 7800 | |
25 | HK2518RS | 25 | 32 | 18 | 13600 | 20000 | 6900 |
HK2520 2RS | 25 | 32 | 20 | 13600 | 20000 | 6900 | |
BK2518RS | 25 | 32 | 18 | 13600 | 20000 | 6900 | |
30 | HK3018RS | 30 | 37 | 18 | 16200 | 26000 | 5300 |
HK3020 2RS | 30 | 37 | 20 | 16200 | 26000 | 5300 | |
35 | HK3520 2RS | 35 | 42 | 20 | 16700 | 30500 | 4900 |
45 | HK4520 2RS | 45 | 52 | 20 | 20300 | 41000 | 3800 |

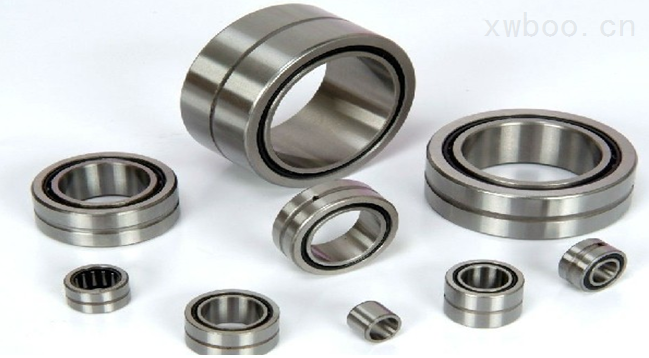

名稱：滾針軸承
品牌：兆益
規格參數：可按客戶要求定做
使用特性：耐高溫 耐摩擦
用途：通用
軸承材料：軸承鋼
樣品及現貨：現貨
一滾針軸承的注意事項
